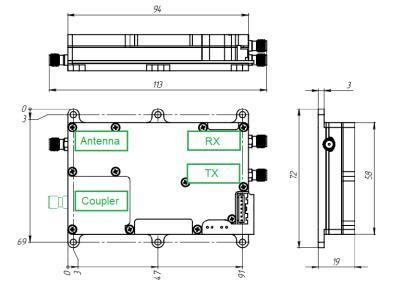

MMTR4658P37A is a high power amplifier operating between 4.6 GHz and 5.8 GHz with 37dBm. In TX mode, the gain is 47dB, and the gain flatness can be as large as ±1 typical value, and the maximum is ±1.5. In RX mode, the gain is 20dB, the gain flatness is typically ±1, and the noise figure is 4dB. In addition, the operating voltage of this product is 28V and the operating current is 2A. This TR has the characteristics of small size, light weight and high power. The detailed size is 94×72×19 mm and the weight is 0.2kg. This product can be used in applications with high requirements on product size and weight.

Mars RF has established a strict, high-standard product quality control system and production process quality management system in accordance with ISO:9001 standards to ensure that each Mars RF product has better performance and is more reliable. What’s more, Mars RF relies on various automated testing platforms to perform testing tasks comprehensively and accurately, ensure data traceability, and avoid mistakes and errors that may be caused by human operation, thereby improving the accuracy and reliability of the test. Because it adopts an unattended design, it can perform tests continuously without human intervention, which not only saves labor costs, but also reduces human errors, greatly improving testing efficiency. In addition, the automated testing platform also has the function of automatically identifying errors, which can quickly identify errors and provide detailed error information to help developers quickly locate problems and fix them. This automated error identification and handling mechanism greatly shortens the time to solve problems and improves development efficiency.

• High Efficiency;

• Available in sizes as small as 94×72×19 mm

• Weight as low as 0.2kg
