RF Broadband High Power Amplifiers MM0727P43B

Model No.: MM0727P43B

The frequency range of this class AB broadband power amplifier module covers from 700MHz to 2700MHz with minimum 20Watts saturated RF output power. This solid state power amplifier(SSPA) features high reliability and excellent performance with RF in/output impedance 50ohm matched, making it ideal for the applications in the P/L/S frequency bands.

  • Start 700 MHz
  • Stop 2700 MHz
  • Pout 20 Watts
  • Gain 43 dB
  • Voltage 28 V
  • Current 4 Amp
  • Mode CW
  • Size 150x90x22 mm
  • Stock 27
Get Quote DATA SHEET
product details

Product introduction

This class AB broadband power amplifier module has a minimum saturated RF output power of 20 watts and a frequency range of 700 MHz to 2700 MHz. For applications in the P/L/S frequency bands, this solid state power amplifier (SSPA) with RF in/output impedance matching of 50 ohms offers great performance and good durability. The operating voltage of this class AB broadband power amplifier module is about 28 v with 24v minimum and 32v maximum, while the current consumption is 4Amp typical. this class AB broadband power amplifier is equipped with built-in control and circuit protection, which helps prevent damage and provides a higher level of reliability and safety for the amplifier and the connected equipment under various conditions.

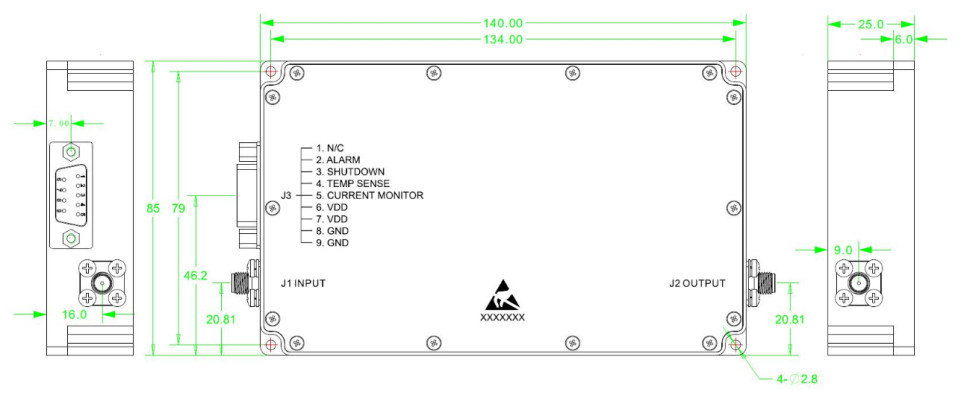

There are nine pins in terms of DC interface current connectors, and they are all made to fit certain function and purposes or user requirements. Certain products include pins that are specifically reserved so that we can alter the product's original design in response to clients' unique needs.

Parameters

Start frequency 700 MHz
Stop frequency 2700 MHz
RF in/output impedance 50Ω
Switching Speed 2 uS
Harmonics -15dBc
Weight 0.65kg
Current consumption 4 Amp

Key Features

√ Class AB broadband
√ Solid state power amplifier
√ P/L/S frequency bands
√ Compact design
√ Built-in protection
√ High efficiency
√ Define RF amplifier
KB0727M43Br1o

Localized supply chain

We have localized suppliers and built an extremely comprehensive supplier management system. We have the following benefits compared with other companies without reliable suppliers:
1. Streamlined processes: A complete supplier management system helps in streamlining the procurement processes. This ensures efficient workflow and shortens the delivery time and conduct better amplifier stability measurement.
2. Quality control: With a robust supplier management system in place, Mars RF can ensure that it work with reputable suppliers who meet quality standards and adhere to regulations.
